Brand Name : | ET |
Model Number : | PVC Spray Hose |
Certification : | ISO9001:2008,SGS,ROHS |
Price : | $0.03-$5 / meter |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 6000tons / year |
Delivery Time : | 10-15 work days |

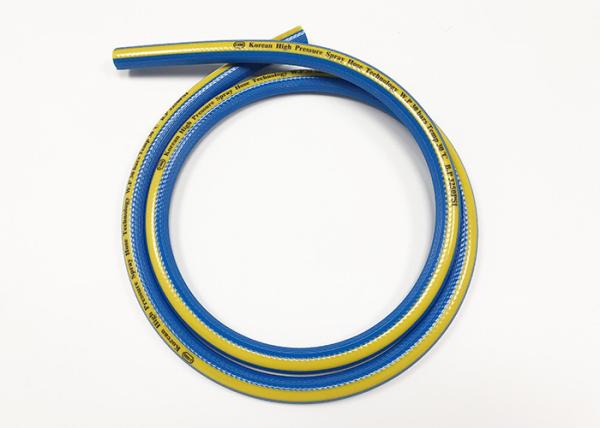

3/8 inch Flexible Agricultural Transparent PesticidePVC Spray Hose
size | 1/4"-1" |
color | yellow, orange, red etc. |
weight | 0.096-0.563kg/m |
standard | passed the ROHS, PAHS test. |
features | brightness, Abrasion, weathering, oil, acid and alkali. |
application | used in high pressure industrial, compressors, |
Good flexibility and durability
Thermal and chemical resistance
Smooth interior for efficient flow of water
High pressure spray hose, With Korea Technology, Excellent
durability under high pressure
Good flexibility and durability against climate, abrasion, chemical
agent with brass Connector both end male & female.
Feature:
1. This product is made of high quality PVC and synthetic
materials. It is soft and flexible, safe and reliable, with good
pressure resistance, good weather resistance and excellent sealing.
2. High-quality raw materials produce no odor, strong bending
ability and strong durability.
3. Wide temperature range, no deformation, strong corrosion
resistance.
4. Add flame retardant ingredients, self-extinguishing from fire
Applicable Places:
It is used in agricultural drugs, high-pressure car washing,
landscaping, disinfection and sterilization.
Service life: ≥10 years (recommended seal ring is best replaced 2 years)
Replace your high-pressure sprayer hose with this durable, PVC hose. This highly flexible and lightweight hose is chemical resistant. Ideal for use with agricultural chemicals, fertilizers, water or compressed air. May be used in temperature ranges from –5℃ to 65℃.
Specification:
Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
inch | mm | inch | mm | kg/m | bar | psi | m | ft |
1/4 | 6.5 | 0.452 | 11.5 | 0.096 | 30 | 450 | 100 | 300 |
6.5 | 0.493 | 12.5 | 0.121 | 50 | 750 | 100 | 300 | |
5/16 | 8.5 | 0.531 | 13.5 | 0.117 | 30 | 450 | 100 | 300 |
8.5 | 0.571 | 14.5 | 0.146 | 50 | 750 | 100 | 300 | |
3/8 | 10 | 0.629 | 16 | 0.166 | 30 | 450 | 100 | 300 |
10 | 0.700 | 17 | 0.200 | 50 | 750 | 100 | 300 | |
1/2 | 13 | 0.787 | 20 | 0.250 | 25 | 375 | 100 | 300 |
13 | 0.827 | 21 | 0.290 | 50 | 750 | 100 | 300 | |
5/8 | 16 | 0.944 | 24 | 0.340 | 20 | 300 | 100 | 300 |
16 | 0.985 | 25 | 0.391 | 40 | 600 | 100 | 300 | |
3/4 | 19 | 1.102 | 28 | 0.450 | 20 | 300 | 100 | 300 |
19 | 1.142 | 29 | 0.509 | 30 | 450 | 100 | 300 | |
1 | 25 | 1.339 | 34 | 0.563 | 20 | 300 | 100 | 300 |
![]() |
