Braided Layflat Fire Hose , Blue Heavy Duty Backwash Hose Good Flexibility

Ask Lasest Price
Brand Name :	ET
Model Number :	1''-16''
Certification :	ISO9001:2008;SGS
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	4000tons / per year
Delivery Time :	10-15 work days

Add to Cart

Product Details
Company Profile

Braided Layflat Fire Hose , Blue Heavy Duty Backwash Hose Good Flexibility

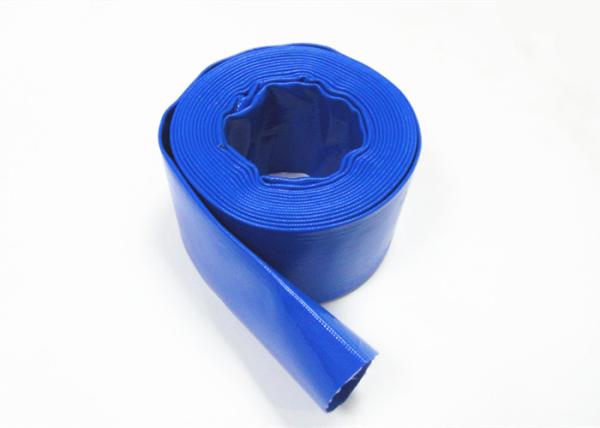

heavy duty layflat fire hose braided backwash hose with blue color

size	1inch to 16inch (25mm to 408mm)
Color	blue, green, yellow, red, black etc
temperature range	-5℃ to 65℃
burst pressure	6bar to 30bar
features	mildew proofing
application	backwash pool

Construction:

Name: pvc layflat hose

Size available: from 1 inch to 16 inch

Material: new pvc material

Reinforcement: polyester yarn

Color: blue, yellow, green, red, orange etc.

Length per roll: 50m-100m or customized

Working pressure: 2bar to 15bar

Features:

1. New technique: unique one-step forming, high adhesion between lining, reinforcement plies and cover
2. New character: Higher bursting pressure, lighter weight and better abrasion resistance than traditional lay flat hose

3. Resist kinking and twisting, abrasion, corrosion, high pressure and terrible weather.

4. Light weight, good flexibility, easy for rolling-up and storage.

5. Multi-purpose, which used for irrigation, cement filing, river-way sand extraction, water discharge in construction site.

6. Made of environmental materials, non-smell, non-toxic, healthier.

Packaging Details

1.Cardboard+woven bag (Standard Packing, can see the picture below)
2. Korean Style Packing:
Kraft-paper+film
3.Other Packing:
Cardboard+woven bag+Pallet (For big size use Pallet in order to protect the hose)
4.Special Packing: Customized, requesting to customer to send photo

Specification:

Standard Duty PVC Layflat Hose

Inner Diameter		Wall Thickness		Weight	W.P.(at 23℃)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
1	25	0.047	1.20	0.15	5	75	100	300
1-1/4	32	0.047	1.20	0.17	5	75	100	300
1-1/2	38	0.049	1.25	0.19	5	75	100	300
2	51	0.043	1.10	0.22	4	60	100	300
2-1/2	64	0.047	1.20	0.30	4	60	100	300
3	76	0.047	1.20	0.35	4	60	100	300
4	102	0.047	1.20	0.53	4	60	100	300
5	127	0.053	1.35	0.75	4	60	100	300
6	153	0.053	1.35	0.90	4	60	100	300
8	203	0.071	1.80	1.60	3	45	100	300
10	254	0.094	2.40	2.60	3	45	50	150
12	305	0.094	2.40	3.10	2	30	50	150
14	358	0.118	3.00	5.00	2	30	50	150
16	408	0.118	3.00	6.00	2	30	50	150

Medium Duty PVC Layflat Hose:

Inner Diameter		Wall Thickness		Weight	W.P.(at 23℃)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
1	25	0.051	1.30	0.16	8	120	100	300
1-1/4	32	0.051	1.30	0.19	7	100	100	300
1-1/2	38	0.051	1.3	0.21	7	100	100	300
2	51	0.053	1.35	0.30	6	90	100	300
2-1/2	64	0.057	1.45	0.40	6	90	100	300
3	76	0.057	1.45	0.50	6	90	100	300
4	102	0.071	1.80	0.80	6	90	100	300
5	127	0.075	1.90	1.08	6	90	100	300
6	153	0.094	2.40	1.60	6	90	100	300
8	203	0.103	2.60	2.20	5	75	50	150

Heavy Duty PVC Layflat Hose:

Inner Diameter		Wall Thickness		Weight	W.P.(at 23℃)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
1	25	0.060	1.50	0.19	10	150	100	300
1-1/4	32	0.060	1.50	0.21	10	150	100	300
1-1/2	38	0.071	1.7	0.29	10	150	100	300
2	51	0.061	1.55	0.35	8	120	100	300
2	51	0.069	1.75	0.40	10	150	100	300
2-1/2	64	0.079	2.00	0.60	10	150	100	300
3	76	0.079	2.00	0.66	8	120	100	300
3	76	0.095	2.40	0.80	10	150	100	300
4	102	0.083	2.10	0.92	8	120	100	300
4	102	0.095	2.40	1.00	10	150	100	300
5	127	0.075	1.90	1.08	10	150	100	300
6	153	0.118	3.00	2.00	8	120	100	300
8	203	0.126	3.20	2.80	6	90	50	150
