| Brand Name : | ET |
| Model Number : | 1/4"-10" |
| Certification : | ISO9001:2008,SGS,ROHS |
| Price : | $0.1-$5 / meter |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 6000tons / year |
| Delivery Time : | 10-15 work days |

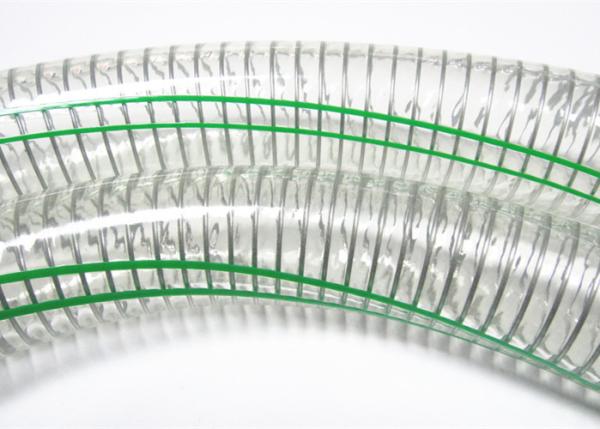

Clear PVC Hose with Steel Wire Reinforced Discharge Water Pipe
| size | 1/4''-10'' |
| color | clear, blue,yellow etc. |
| Length: | 20m/30m/50m/100m or customized |
| weight | 0.12 - 23kg/m |
| working pressure | 2bar - 10bar |
| burst pressure | 6bar - 30bar |
By improving the formula and adding special materials, the hose has the performance of freeze resistance and low temperature resistance, and can be used normally at minus 10 degrees celsius, which meets the needs of people in the northern countries and special low temperature environment.
Advantages:
We can match the hose with fittings and clamps, or produce the fittings according to your requirements. When you receive the product, you can put it into use immediately.
It can remain good flexibility in -10℃, not hard, bending is not brittle.
Both sides have the same wall thickness, no deviation, smooth and transparent. We can also produce opaque steel wire hoses.
We use advanced equipment, employ professional and technical personnel specialized checks, the pipe wall has no impurities, no bubbles.
It meets the needs of new type pipes in mechanical petroleum, powder, chemical industry, agriculture, national defense industry, manufacturing, pumping and conveying industries.
Application Areas:
It is widely used in food and sanitation industry. It is an ideal pipe material for pumping and transporting water, oil and powder in industry, agriculture and engineering. It can be used for unloading oil at gas stations, transporting chemical raw materials, transporting water by high-pressure pumps, transporting high-pressure pipes for ships and raw materials in factories.
Specification:
| Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1/4 | 6 | 0.433 | 11 | 0.12 | 10 | 145 | 100 | 300 |
| 5/16 | 8 | 0.551 | 14 | 0.15 | 10 | 145 | 100 | 300 |
| 3/8 | 10 | 0.629 | 16 | 0.20 | 10 | 145 | 100 | 300 |
| 1/2 | 12 | 0.708 | 18 | 0.22 | 8 | 120 | 100 | 300 |
| 5/8 | 15 | 0.866 | 22 | 0.31 | 8 | 120 | 100 | 300 |
| 3/4 | 19 | 0.984 | 25 | 0.36 | 8 | 120 | 50 | 150 |
| 1 | 25 | 1.299 | 33 | 0.54 | 8 | 120 | 50 | 150 |
| 1-1/4 | 32 | 1.614 | 41 | 0.78 | 7 | 100 | 40 | 120 |
| 1-1/2 | 38 | 1.889 | 48 | 1.05 | 6 | 90 | 40 | 120 |
| 1-3/4 | 45 | 2.204 | 56 | 1.30 | 6 | 90 | 40 | 120 |
| 1-7/8 | 48 | 2.322 | 59 | 1.40 | 6 | 90 | 40 | 120 |
| 2 | 50 | 2.441 | 62 | 1.60 | 5 | 75 | 40 | 120 |
| 2-1/4 | 58 | 2.755 | 70 | 2.00 | 5 | 75 | 30 | 90 |
| 2-1/2 | 63 | 3.149 | 80 | 2.80 | 5 | 75 | 30 | 90 |
| 3 | 75 | 3.582 | 91 | 3.50 | 4 | 60 | 30 | 90 |
| 3-1/2 | 90 | 4.251 | 108 | 4.50 | 4 | 60 | 20 | 60 |
| 4 | 100 | 4.645 | 118 | 4.80 | 3 | 45 | 20 | 60 |
| 5 | 127 | 5.629 | 143 | 6.00 | 3 | 45 | 20 | 60 |
| 6 | 152 | 6.692 | 170 | 9.00 | 3 | 45 | 10 | 30 |
| 8 | 200 | 8.818 | 224 | 12.00 | 3 | 45 | 10 | 30 |
| 10 | 250 | 10.866 | 276 | 23.00 | 2 | 30 | 10 | 30 |
|
