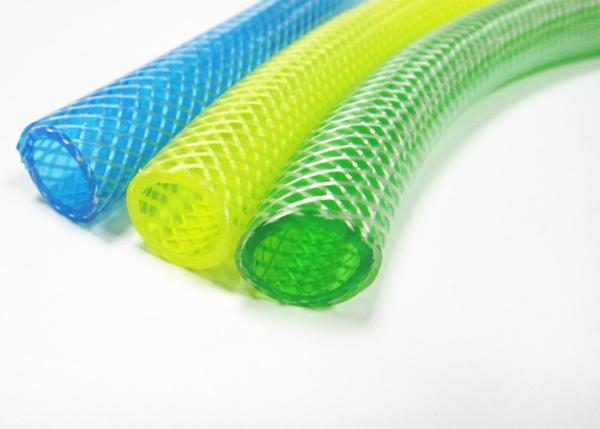

Foood Grade Flexible Clear PVC Braided Hose , Braided Water Hose Cold Resistant
| product name | pvc fiber reinforced hose |
| size | 1/8'' to 3'' |
| working pressure | 4bar to 12bar |
| color | clear, green,orange, blue,red etc. |
| feature | cold resistant |
| application | for factory |
PVC fiber reinforced hose is mainly used by liquid transportation. Characterized by innocuity, transparence, pressure proofing, stretch proofing, acid and alkali resistance, elegant appearance, suppleness, handiness and wear well, etc. the hose can widely apply to the transfer piping of air, gas, coal gas, oil and other liquid and gas.
Product process:
this hose production line, chiefly consisting of extruder dousing tank, hauling machine, coil winding machine, coiler and others, has advantages of reasonable accessories, unique structure, reliable performance, simple operation, convenient maintenance and continuous production capacity, etc. deeply welcomed and trusted by extensive consumers
Features:
1. Aging resistance.
2. Oil resistant.
3. High pressure.
4. Soft in four seasons.
5. Good wear resistance.
6. Light weight.
7.Conform to ROHS environmental protection recognition.
8.Excellent chemical property, pressure loss is small.
9.Degree of hardness is stable, good antiknock characteristic.
10.Excellent flexibility, the bevelling radius is small.
Application
1.Transport water or other liquid.
2.Industry robot, pneumatic tool.
3.Vehicles service and house painting.
4.Metal and electronic products protection coat.
Specification:
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1/8 | 4 | 0.078 | 2.0 | 0.051 | 12 | 175 | 100 | 300 |
| 13/64 | 5 | 0.098 | 2.5 | 0.076 | 12 | 175 | 100 | 300 |
| 1/4 | 6 | 0.098 | 2.5 | 0.087 | 12 | 175 | 100 | 300 |
| 5/16 | 8 | 0.098 | 2.5 | 0.105 | 10 | 145 | 100 | 300 |
| 3/8 | 10 | 0.098 | 2.5 | 0.130 | 10 | 145 | 100 | 300 |
| 1/2 | 12 | 0.118 | 3 | 0.185 | 9 | 130 | 100 | 300 |
| 5/8 | 16 | 0.118 | 3 | 0.230 | 8 | 116 | 100 | 300 |
| 3/4 | 19 | 0.118 | 3 | 0.270 | 6 | 87 | 100 | 300 |
| 7/8 | 22 | 0.118 | 3 | 0.305 | 5 | 73 | 100 | 300 |
| 1 | 25 | 0.118 | 3 | 0.340 | 4 | 60 | 100 | 300 |
| 1-1/4 | 32 | 0.157 | 4 | 0.590 | 4 | 60 | 100 | 300 |
| 1-1/2 | 38 | 0.157 | 4 | 0.690 | 4 | 60 | 50 | 150 |
| 1-3/4 | 45 | 0.217 | 5.5 | 1.140 | 4 | 60 | 50 | 150 |
| 2 | 50 | 0.236 | 6 | 1.380 | 4 | 60 | 50 | 150 |
| 2-1/2 | 64 | 0.276 | 7 | 2.030 | 4 | 60 | 50 | 150 |
| 3 | 76 | 0.630 | 8 | 2.750 | 4 | 60 | 50 | 150 |
|
|
