| Brand Name : | ET |
| Model Number : | fiber reinforced hose |
| Certification : | SGS |
| Price : | $0.08-$3 / piece |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 1000000m / per month |
| Delivery Time : | 15-20 days |

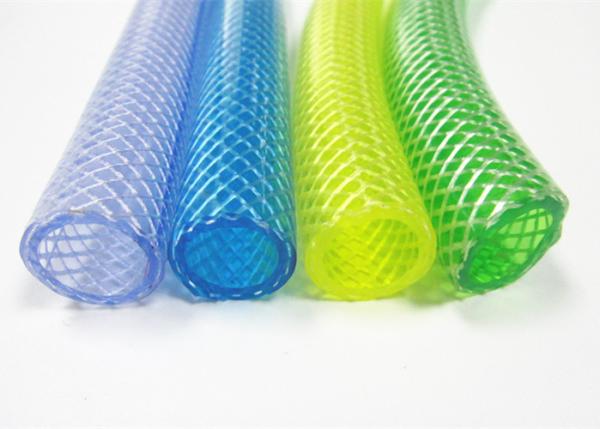

Light Weight Fiber Reinforced PVC Braided Hose Black Blue Green Yellow Color
| product name | clear braided hose |
| inner diameter | from 4mm to 76mm |
| standard | ISO;SGS;FDA |
| length | 50m/roll, 100m/roll or customized |
| feature | toughness, durability, softness, pressure resistance |
| application | Multifunctional industrial and life assistant |
Features:
1. Toughness,the polyester is special processed, as a reinforcement, which is fully textile in the middle of the tube, so that the breaking pressure of tube is very high, can reach 200 kg / cm²; working pressure can reach 60 kg / cm².
2. The PVC layer and polyester thread layer are pasted by special engineering technology, so that there are not quality questions, such as separation, layered etc.
3. Durability, we guarantee our hose quality by strictly product process, such as strictly selected materials, fine filter treatment and perfect quality management system, so our pipe has a long service life.
4. Softness: Using twisted polyester yarn and PVC, which is mixed as reasonable proportion to produce products, reducing the rigidity of PVC pipe, so the product is not only smooth but also is very soft.
5. With high pressure resistance, tensile resistance, acid and alkali resistance, corrosion resistance, beautiful appearance, soft and light, durable
Use:
The products are suitable for high-pressure cleaning machine, high-pressure oil system, agricultural medical machinery, garden vegetable spraying machine, high-pressure sprayer, high-pressure pipe cleaner, high-pressure AIR construction equipment, shipyard, steel structure company, welding and cutting equipment, medical tower matching use.
Specification:
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1/8 | 4 | 0.078 | 2.0 | 0.051 | 12 | 175 | 100 | 300 |
| 13/64 | 5 | 0.098 | 2.5 | 0.076 | 12 | 175 | 100 | 300 |
| 1/4 | 6 | 0.098 | 2.5 | 0.087 | 12 | 175 | 100 | 300 |
| 5/16 | 8 | 0.098 | 2.5 | 0.105 | 10 | 145 | 100 | 300 |
| 3/8 | 10 | 0.098 | 2.5 | 0.130 | 10 | 145 | 100 | 300 |
| 1/2 | 12 | 0.118 | 3 | 0.185 | 9 | 130 | 100 | 300 |
| 5/8 | 16 | 0.118 | 3 | 0.230 | 8 | 116 | 100 | 300 |
| 3/4 | 19 | 0.118 | 3 | 0.270 | 6 | 87 | 100 | 300 |
| 7/8 | 22 | 0.118 | 3 | 0.305 | 5 | 73 | 100 | 300 |
| 1 | 25 | 0.118 | 3 | 0.340 | 4 | 60 | 100 | 300 |
| 1-1/4 | 32 | 0.157 | 4 | 0.590 | 4 | 60 | 100 | 300 |
| 1-1/2 | 38 | 0.157 | 4 | 0.690 | 4 | 60 | 50 | 150 |
| 1-3/4 | 45 | 0.217 | 5.5 | 1.140 | 4 | 60 | 50 | 150 |
| 2 | 50 | 0.236 | 6 | 1.380 | 4 | 60 | 50 | 150 |
| 2-1/2 | 64 | 0.276 | 7 | 2.030 | 4 | 60 | 50 | 150 |
| 3 | 76 | 0.315 | 8 | 2.750 | 4 | 60 | 50 | 150 |
|
