| Brand Name : | ET |
| Model Number : | 1"-6'' |
| Certification : | ISO9001:2008,SGS,ROHS |
| Price : | $0.03-$5 / meter |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 6000tons / year |
| Delivery Time : | 10-15 work days |

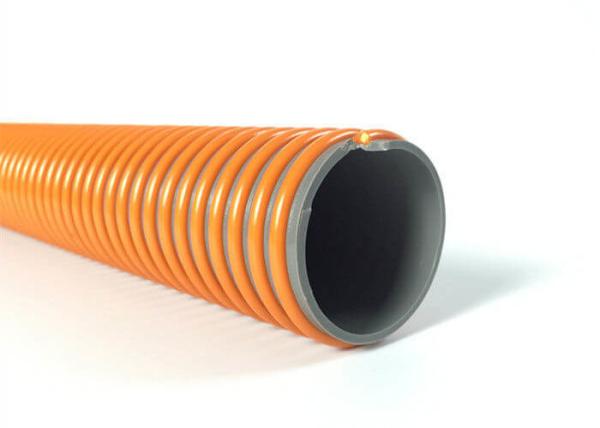

heavy duty sandblast suction dredge hose / pipe / tube for grit and ccement
Heavy Duty Sand Blast Suction Dredge Hose for Grit and Cement which is also called grit suction hose, sandblast suction hose, sand suction hose, cement suction hose, dredge suction hose, quarry suction hose, slurries suction hose, sewage suction hose etc. Which is ideally suction hose designed for heavy duty suction or transfer.
| specification | 1inch-6inch |
| color | yellow, blue, gray, red, orange, black etc. |
| length | 20m, 30m, 40m, 50m/roll or as consumer's requst |
| working pressure | 4bar to 8bar |
| features | flexibility, crush resistant, oil resistant, UV resistant, smooth inner |
| application | suction and delivery of water, oil, grits, cement, slurries, sewage |
Construction:
This sand suction hose is made of anti-abrasive flexible PVC hose and anti-abrasive spiral PVC reinforcement, smooth inner prevents materials blocked, corrugated surface provides good abrasion resistance.
Features:
This hose is excellent flexibility, crush resistant, oil resistant, UV resistant, smooth inner prevents materials blockage, corrugated surface make the hose with good abrasion resistance and provide high flexibility, rigid helix reinforcement provides high pressure resistant, various lengths available and easily assembled with different couplings and clamps.
Application:
The sandblast suction hose is widely used for heavy duty suction and delivery of water, oil, grits, cement, slurries, sewage, sand, gravels in surface mines and quarries, constructions, pump industries, dredging equipment, shipyards, ports, bays and other industry applications.
Specification:
| Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1 | 25 | 1.378 | 35 | 0.50 | 8 | 120 | 50 | 150 |
| 1-1/4 | 32 | 1.654 | 42 | 0.60 | 8 | 120 | 50 | 150 |
| 1-1/2 | 38 | 1.929 | 49 | 0.70 | 7 | 100 | 50 | 150 |
| 2 | 51 | 2.520 | 64 | 1.05 | 7 | 100 | 50 | 150 |
| 2-1/2 | 63 | 3.031 | 77 | 1.39 | 6 | 90 | 50 | 150 |
| 3 | 76 | 3.622 | 92 | 1.70 | 6 | 90 | 30 | 90 |
| 4 | 102 | 4.724 | 120 | 2.85 | 5 | 75 | 30 | 90 |
| 5 | 127 | 5.708 | 145 | 3.90 | 4 | 60 | 30 | 90 |
| 6 | 152 | 6.732 | 171 | 5.00 | 4 | 60 | 30 | 90 |
|
|
