    Standard Duty Clear PVC Hose , Corrugated Helix Water Pool Suction Hose

    Ask Lasest Price
    Brand Name : ET
    Model Number : 3/4"-16''
    Certification : ISO9001:2008,SGS,ROHS
    Price : $0.03-$5 / meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 6000tons / year
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

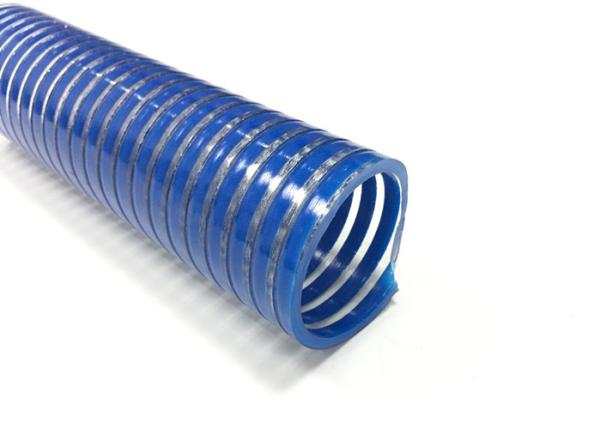

    Standard Duty Clear PVC Hose , Corrugated Helix Water Pool Suction Hose

    standard duty pvc clear corrugated helix water suction pool hose / pipe / tube


    specification3/4inch-16inch
    coloryellow, blue, gray, red, orange, black etc.
    length20m, 30m, 40m, 50m/roll or as consumer's requst
    working pressure2bar to 6bar
    burst pressure6bar to 180bar
    applicationconvey and suction water, oil, powder etc.

    Details:


    Standard Duty PVC Clear Corrugated Helix Water Suction Pool Hose which is also called helix reinforced suction hose, corrugated suction hose, clear water suction hose, pool suction hose and pump suction hose etc. Which is high quality PVC suction hose designed for a wide variety of suction or transfer applications.


    Application:


    Widely used throughout industry in both positive and negative pressure applications, ideally for conveying and suction of water, oil, powder, granules in pump industries, constructions, mining industries, chemical factories and many other industry applications.


    Construction:


    Flexible and durable PVC was extruded together with the rigid helix reinforcement, both bore and cover are smooth, with low friction loss, easy for dragging.


    Features:


    Excellent flexibility, crush and abrasion resistant, smooth tube for less friction loss, smooth cover allows easy dragging, weathering resistant, clear to have full visual flow of materials, corrosion resistant to light chemicals, various lengths available and can be supplied with different couplings and clamps.


    Specification:


    Inner DiameterOuter DiameterWeightW.P.(at 23℃)Std Length
    inchmminchmmkg/mbarpsimft
    3/4190.945240.2569050150
    1251.181300.3369050150
    1-1/4321.457370.3869050150
    1-1/2381.732440.5869050150
    2512.284580.8257550150
    2-1/2642.835721.175753090
    3763.307841.404603090
    41024.4881142.704603090
    51275.5121403.604603090
    61536.5751675.003452060
    82038.5432176.253451030
    1025410.78727010.002301030
    1230512.95332918.002301030
    1435815.03938220.0023050150
    1640817.00843223.0023050150
