| Brand Name : | ET |
| Model Number : | 1/4"-1'' |
| Certification : | ISO9001:2008,SGS,ROHS |
| Price : | $0.03-$5 / meter |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 6000tons / year |
| Delivery Time : | 10-15 work days |

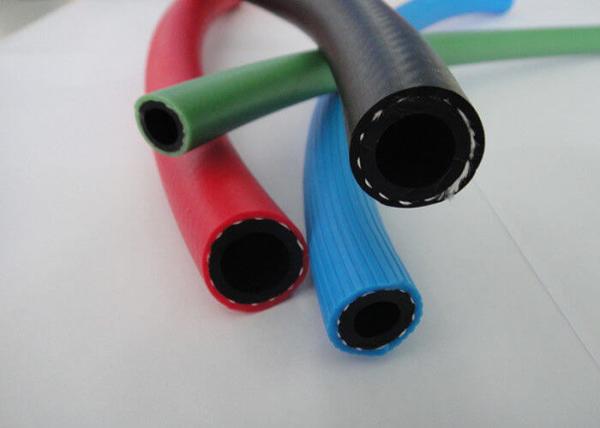

pvc rubber composite multipurpose utility hose / pipe to transfer water air oil
PVC and Rubber Composite Multipurpose Utility Hose to Transfer Water Air and Oil which is also called Multipurpose Hose, Multipurpose Air Hose, Water Transfer Hose, Oil Resistant Hose, Air Transfer Hose, Air Drill Hose, Paint Spray Hose and so on. It is designed to achieve long-term good performance in general air, water, oil and light chemical applications.
| specification | 1/4inch-1inch |
| color | yellow, blue, gray, red, orange, black etc. |
| length | 20m, 30m, 40m, 50m/roll or as consumer's requst |
| working pressure | 20bar |
| features | Good flexibility, light weight for easy handle, robust, kink resistant |
| application | transfer air, water, fuel and light chemicals |
Construction:
This multipurpose Hose is made from specially formulated PVC & Rubber compound, with tough inner and cover, reinforced with high tensile polyester yarn, special formula and extruded technology make the two layers with excellent bonding.
Features:
Good flexibility, light weight for easy handle, robust, kink resistant, superior abrasion resistance, long service life, oil and light chemical resistant, UV and weather resistant, all lengths and different colors available, assembled with different type fittings and protectors, good replacement of rubber hose in general industry.
Application:
Ideally multipurpose hose to transfer air, water, fuel and light chemicals, equipped with air compressors, pneumatic tools, paint spraying systems, mining drills, pneumatic washing machines, engine components and mining equipment in general industry, mining, construction, building, plants and several other services.
Specification:
| Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1/4 | 6.5 | 0.472 | 12 | 0.11 | 20 | 300 | 100 | 300 |
| 5/16 | 8.5 | 0.551 | 14 | 0.13 | 20 | 300 | 100 | 300 |
| 3/8 | 10 | 0.629 | 16 | 0.17 | 20 | 300 | 100 | 300 |
| 1/2 | 13 | 0.787 | 20 | 0.25 | 20 | 300 | 100 | 300 |
| 5/8 | 16 | 0.984 | 25 | 0.39 | 20 | 300 | 100 | 300 |
| 3/4 | 19 | 1.102 | 28 | 0.45 | 20 | 300 | 50 | 150 |
| 1 | 25 | 1.338 | 34 | 0.56 | 20 | 300 | 50 | 150 |
|
|
