| Brand Name : | ET |
| Model Number : | 1''-16'' |
| Certification : | ISO9001:2008;SGS |
| Price : | Negotiation |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 4000tons / per year |
| Delivery Time : | 10-15 work days |

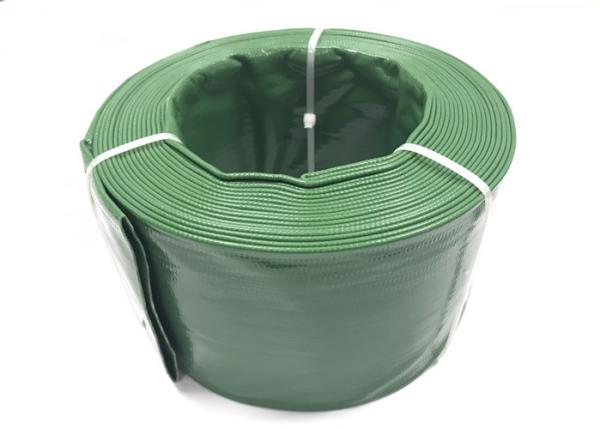

pvc layflat water garden irrigation hose / flat fire fighting hose pipe tube
| size available | from1 inch to 16 inch |
| Color | green, yellow, red, black, clear etc |
| Length per roll | 10m/20m/30m/50m/100m Or Customized |
| burst pressure | 6bar - 30bar |
| features | non-toxic, durable, flexible, UV-resistant |
| application | transfer air, water |
Structure:
The PVC one timed formed lay flat hose is made from high strength
polyester fiber and high quality PVC material, though continuous
winding, uniform distribution and plastic extrusion molding.
Feature:
1. UV resistance, flexible, bright color, lighter and less bulky
than most rubber discharge hose.
2. Resist abrasion and weathering, resist kinking and stretching
while in service.
3. More economic solutions replace rubber lay flat hose and TPU lay flat hose in some cases.
4. Extrude industrial grade PVC with one layer high tensile fiber braid reinforcement.
5. Color and surface, normally use red, blue, yellow, orange, green etc. we also produce by request of customers.
Application:
For suck or discharge large flow air, water, dust, mud, or chemical solvent for fire fighting, agriculture irrigation, industrial water construction, hardware, garden tools etc.
Our Service:
1. High quality, this is the soul of our company to exist.
2. Do more and fast for customer, this is our method.
3. Only when customer win, we win, this is our idea.
4. We offer sample free of charge.
5. 24hours quick response when there is emergency.
6. Quality guarantee, never be afraid of quality problem, we take response from the beginning to the end.
7. Product sample is available.
8. OEM is welcome.
Specification:
Standard Duty PVC Layflat Hose
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1 | 25 | 0.047 | 1.20 | 0.15 | 5 | 75 | 100 | 300 |
| 1-1/4 | 32 | 0.047 | 1.20 | 0.17 | 5 | 75 | 100 | 300 |
| 1-1/2 | 38 | 0.049 | 1.25 | 0.19 | 5 | 75 | 100 | 300 |
| 2 | 51 | 0.043 | 1.10 | 0.22 | 4 | 60 | 100 | 300 |
| 2-1/2 | 64 | 0.047 | 1.20 | 0.30 | 4 | 60 | 100 | 300 |
| 3 | 76 | 0.047 | 1.20 | 0.35 | 4 | 60 | 100 | 300 |
| 4 | 102 | 0.047 | 1.20 | 0.53 | 4 | 60 | 100 | 300 |
| 5 | 127 | 0.053 | 1.35 | 0.75 | 4 | 60 | 100 | 300 |
| 6 | 153 | 0.053 | 1.35 | 0.90 | 4 | 60 | 100 | 300 |
| 8 | 203 | 0.071 | 1.80 | 1.60 | 3 | 45 | 100 | 300 |
| 10 | 254 | 0.094 | 2.40 | 2.60 | 3 | 45 | 50 | 150 |
| 12 | 305 | 0.094 | 2.40 | 3.10 | 2 | 30 | 50 | 150 |
| 14 | 358 | 0.118 | 3.00 | 5.00 | 2 | 30 | 50 | 150 |
| 16 | 408 | 0.118 | 3.00 | 6.00 | 2 | 30 | 50 | 150 |
Medium Duty PVC Layflat Hose:
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1 | 25 | 0.051 | 1.30 | 0.16 | 8 | 120 | 100 | 300 |
| 1-1/4 | 32 | 0.051 | 1.30 | 0.19 | 7 | 100 | 100 | 300 |
| 1-1/2 | 38 | 0.051 | 1.3 | 0.21 | 7 | 100 | 100 | 300 |
| 2 | 51 | 0.053 | 1.35 | 0.30 | 6 | 90 | 100 | 300 |
| 2-1/2 | 64 | 0.057 | 1.45 | 0.40 | 6 | 90 | 100 | 300 |
| 3 | 76 | 0.057 | 1.45 | 0.50 | 6 | 90 | 100 | 300 |
| 4 | 102 | 0.071 | 1.80 | 0.80 | 6 | 90 | 100 | 300 |
| 5 | 127 | 0.075 | 1.90 | 1.08 | 6 | 90 | 100 | 300 |
| 6 | 153 | 0.094 | 2.40 | 1.60 | 6 | 90 | 100 | 300 |
| 8 | 203 | 0.103 | 2.60 | 2.20 | 5 | 75 | 50 | 150 |
Heavy Duty PVC Layflat Hose:
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1 | 25 | 0.060 | 1.50 | 0.19 | 10 | 150 | 100 | 300 |
| 1-1/4 | 32 | 0.060 | 1.50 | 0.21 | 10 | 150 | 100 | 300 |
| 1-1/2 | 38 | 0.071 | 1.7 | 0.29 | 10 | 150 | 100 | 300 |
| 2 | 51 | 0.061 | 1.55 | 0.35 | 8 | 120 | 100 | 300 |
| 2 | 51 | 0.069 | 1.75 | 0.40 | 10 | 150 | 100 | 300 |
| 2-1/2 | 64 | 0.079 | 2.00 | 0.60 | 10 | 150 | 100 | 300 |
| 3 | 76 | 0.079 | 2.00 | 0.66 | 8 | 120 | 100 | 300 |
| 3 | 76 | 0.095 | 2.40 | 0.80 | 10 | 150 | 100 | 300 |
| 4 | 102 | 0.083 | 2.10 | 0.92 | 8 | 120 | 100 | 300 |
| 4 | 102 | 0.095 | 2.40 | 1.00 | 10 | 150 | 100 | 300 |
| 5 | 127 | 0.075 | 1.90 | 1.08 | 10 | 150 | 100 | 300 |
| 6 | 153 | 0.118 | 3.00 | 2.00 | 8 | 120 | 100 | 300 |
| 8 | 203 | 0.126 | 3.20 | 2.80 | 6 | 90 | 50 | 150 |
|
|
