Heavy Duty PVC Layflat Hose / Non Smell Flexible Irrigation PVC Lay Flat Water Discharge Pump Hose

Ask Lasest Price
Brand Name :	ET
Model Number :	3/4''-16''
Certification :	ISO9001:2008;SGS
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	4000tons / per year
Delivery Time :	10-15 work days
MOQ :	1000m

Add to Cart

Product Details
Company Profile

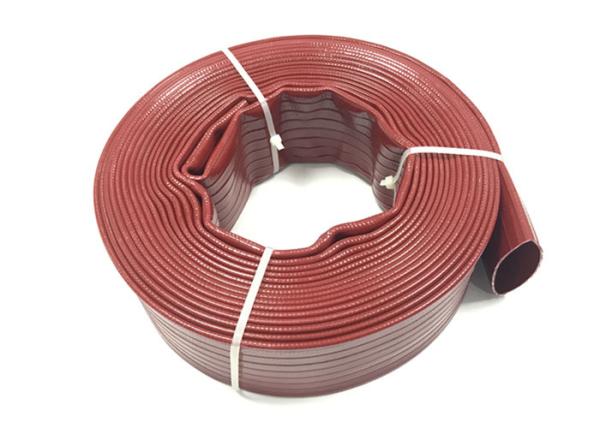

Heavy Duty PVC Layflat Hose / Non Smell Flexible Irrigation PVC Lay Flat Water Discharge Pump Hose

Heavy Duty PVC Layflat Hose / Non Smell Flexible Irrigation PVC Lay Flat Water Discharge Pump Hose for drag mining

Size	3/4-16inch
Color	Blue / Orange / Yellow / Red / Green or customized
Length:	10m/30m/50m/100m Or Customized
W.P	2bar-10bar
Thickness	1mm-4mm
MOQ	1000m

Description:
PVC Layflat hose is a tough water discharge hoses made with a PVC cover and reinforced polyester yarn. The high tensile polyester yarn provides great durability and strength in all working situations. It is highly durable while maintaining great flexibility and best suited for low – high pressure applications.
Features:
1. Light weight, Good flexibility.
2. Corrosion resistant, anti-aging.
3. Easy use & storage.
4. Different colors available.
5. Assemblies and/or cut lengths available.
6. Burst pressure 3 times working pressure.
7. Non-toxic, Non-smell
Application:
PVC layflat hose is designed for light and heavy duty applications, the hoses are most commonly used in agricultural equipment where continuous water flow through irrigation systems is required. Additional uses include water pump, pool & spa, construction, mines and marine.

Main Features:
Sizes: 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4, 5, 6 and 8 inches
Working pressure: 6bar, 8bar and 10bar
Material: dacron inside with PVC outside, blue or red PVC that is reinforced with high-strength synthetic yarn for maximum durability
Advantage:

flexible, easy rolling, waterproof and lightweight, strong, mildew-proof hose is UV-resistant and rolls up flat for easy storage. This type lay flat hose suitable for farms irrigation and mines.

Our Service

1. OEM Service. We can make customer's branding and print it on hose cover. Meanwhile, we also can produce the hose length according to customer's requirements.
2. Packaging Service. Usually we pack the hoses by PE film or weaving belt. We also can use reels or pallets if necessary.
3. Assembly Service. We have crimping machine, and we can make hose assembly in our workshop.
4. Logistics We can supply the client overall process history record, from the production to destination. We and forwarders will help you to handle the matters at your destination.

Specification:

Standard duty PVC layflat water hose:

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		weight	coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
3/4	20	22.4	4	60	16	240	100	100
1	25	27.4	4	60	16	240	140	100
1-1/4	32	34.4	4	60	16	240	160	100
1-1/2	38	40.2	4	60	16	240	180	100
2	51	53	4	60	12	180	220	100
2-1/2	64	66.2	4	60	12	180	300	100
3	76	78.2	4	60	12	180	360	100
4	102	104.5	4	60	12	180	550	100
5	127	129.7	4	60	12	180	750	100
6	153	155.7	3	45	9	135	900	100
8	203	207	3	45	9	135	1600	100
10	255	259.8	3	45	9	135	2600	100
12	305	309.7	2	30	6	90	3000	100
14	358	364	2	30	6	90	5000	50
16	408	414	2	30	6	90	6000	50

Medium Duty PVC Lay Flat Hose:

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		weight	coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
3/4	20	22.7	7	105	21	315	110	100
1	25	27.6	7	105	21	315	160	100
1-1/4	32	34.4	7	105	21	315	190	100
1-1/2	38	40.4	7	105	21	315	220	100
2	51	53.7	6	90	18	270	300	100
2-1/2	64	67.1	6	90	18	270	430	100
3	76	79	6	90	18	270	500	100
4	102	105.8	6	90	18	270	800	100
5	127	131	6	90	18	270	1080	100
6	153	157.8	6	90	18	270	1600	100
8	203	208.2	5	75	15	225	2200	100

Heavy Duty PVC Layflat Hose:

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		weight	coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
3/4	20	23.1	10	150	30	450	140	50
1	25	28.6	10	150	30	450	200	50
1-1/4	32	35	10	150	30	450	210	50
1-1/2	38	41.4	10	150	30	450	290	50
2	51	54.6	10	150	30	450	420	50
2-1/2	64	67.8	10	150	30	450	700	50
3	76	81.1	10	150	30	450	850	50
4	102	107.4	10	150	30	450	1200	50
6	153	159	8	120	24	360	2000	50
8	203	209.4	6	90	18	270	2800	50
