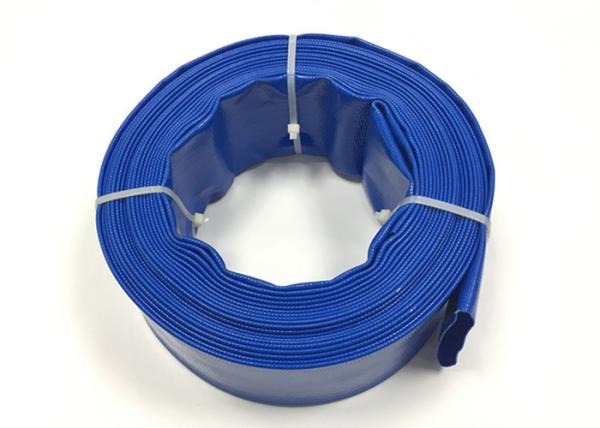

pvc lay flat pump water discharge hose / sprinkler irrigation pipe with UV-resistant
| size | 1-16inch |
| Color | Blue / Orange / Yellow / Red / Green or customized |
| Length: | 10m/30m/50m/100m Or Customized |
| burst pressure | 6bar - 30bar |
| features | non-toxic, durable, flexible, UV-resistant |
| reinforcement | high strength polyester yarn |
Features
PVC lay flat hose is designed as standard duty hose, medium duty hose and heavy duty hose for water liquid discharge in Agricultural Irrigation, industrial and construction applications, and is economical and rolls up flat for easy and storage, resists kinking and twisting.
structure:
Tube: PVC compound
Cover: PVC compound
Reinforcement: High strength polyester yarn
Specification:
Diameter from 1'' to 16'',25mm-408mm
Working pressure: 2bar 3bar 4bar 5bar 6bar 7bar 8bar 10bar
Burst pressure: 3 times working pressure
production
1. High strength polyester woven jacket as reinforcement made by circular woven machine
2. extrusion through the wave give strong bonding between cover and lining
3. finished product
packing
1. standard packing white color PP bags, one roll one bag
2. customized packing pp bags with carton card
3. large diameter and long length packing easy to roll and up, Iron shelf
Quality control
1. Whole length working pressure test
2. Sample burst pressure test
3. Thickness test
Advantage:
After finish production layflat hose, before deliver to customer, every roll layflat hose we will do working pressure test and cut sample to do burst pressure test. Our factory advantage is that we do not only cut one meter or 2 meters as sample to test working pressure, what we test is the whole length of the hose, it will ensure the whole length layflat hose working pressure reach customer requirement.
Specification:
Standard Duty PVC Layflat Hose
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1 | 25 | 0.047 | 1.20 | 0.15 | 5 | 75 | 100 | 300 |
| 1-1/4 | 32 | 0.047 | 1.20 | 0.17 | 5 | 75 | 100 | 300 |
| 1-1/2 | 38 | 0.049 | 1.25 | 0.19 | 5 | 75 | 100 | 300 |
| 2 | 51 | 0.043 | 1.10 | 0.22 | 4 | 60 | 100 | 300 |
| 2-1/2 | 64 | 0.047 | 1.20 | 0.30 | 4 | 60 | 100 | 300 |
| 3 | 76 | 0.047 | 1.20 | 0.35 | 4 | 60 | 100 | 300 |
| 4 | 102 | 0.047 | 1.20 | 0.53 | 4 | 60 | 100 | 300 |
| 5 | 127 | 0.053 | 1.35 | 0.75 | 4 | 60 | 100 | 300 |
| 6 | 153 | 0.053 | 1.35 | 0.90 | 4 | 60 | 100 | 300 |
| 8 | 203 | 0.071 | 1.80 | 1.60 | 3 | 45 | 100 | 300 |
| 10 | 254 | 0.094 | 2.40 | 2.60 | 3 | 45 | 50 | 150 |
| 12 | 305 | 0.094 | 2.40 | 3.10 | 2 | 30 | 50 | 150 |
| 14 | 358 | 0.118 | 3.00 | 5.00 | 2 | 30 | 50 | 150 |
| 16 | 408 | 0.118 | 3.00 | 6.00 | 2 | 30 | 50 | 150 |
Medium Duty PVC Layflat Hose:
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1 | 25 | 0.051 | 1.30 | 0.16 | 8 | 120 | 100 | 300 |
| 1-1/4 | 32 | 0.051 | 1.30 | 0.19 | 7 | 100 | 100 | 300 |
| 1-1/2 | 38 | 0.051 | 1.3 | 0.21 | 7 | 100 | 100 | 300 |
| 2 | 51 | 0.053 | 1.35 | 0.30 | 6 | 90 | 100 | 300 |
| 2-1/2 | 64 | 0.057 | 1.45 | 0.40 | 6 | 90 | 100 | 300 |
| 3 | 76 | 0.057 | 1.45 | 0.50 | 6 | 90 | 100 | 300 |
| 4 | 102 | 0.071 | 1.80 | 0.80 | 6 | 90 | 100 | 300 |
| 5 | 127 | 0.075 | 1.90 | 1.08 | 6 | 90 | 100 | 300 |
| 6 | 153 | 0.094 | 2.40 | 1.60 | 6 | 90 | 100 | 300 |
| 8 | 203 | 0.103 | 2.60 | 2.20 | 5 | 75 | 50 | 150 |
Heavy Duty PVC Layflat Hose:
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1 | 25 | 0.060 | 1.50 | 0.19 | 10 | 150 | 100 | 300 |
| 1-1/4 | 32 | 0.060 | 1.50 | 0.21 | 10 | 150 | 100 | 300 |
| 1-1/2 | 38 | 0.071 | 1.7 | 0.29 | 10 | 150 | 100 | 300 |
| 2 | 51 | 0.061 | 1.55 | 0.35 | 8 | 120 | 100 | 300 |
| 2 | 51 | 0.069 | 1.75 | 0.40 | 10 | 150 | 100 | 300 |
| 2-1/2 | 64 | 0.079 | 2.00 | 0.60 | 10 | 150 | 100 | 300 |
| 3 | 76 | 0.079 | 2.00 | 0.66 | 8 | 120 | 100 | 300 |
| 3 | 76 | 0.095 | 2.40 | 0.80 | 10 | 150 | 100 | 300 |
| 4 | 102 | 0.083 | 2.10 | 0.92 | 8 | 120 | 100 | 300 |
| 4 | 102 | 0.095 | 2.40 | 1.00 | 10 | 150 | 100 | 300 |
| 5 | 127 | 0.075 | 1.90 | 1.08 | 10 | 150 | 100 | 300 |
| 6 | 153 | 0.118 | 3.00 | 2.00 | 8 | 120 | 100 | 300 |
| 8 | 203 | 0.126 | 3.20 | 2.80 | 6 | 90 | 50 | 150 |
|
|
