| Brand Name : | ET |
| Model Number : | 1/4"-10" |
| Certification : | ISO9001:2008,SGS,ROHS |
| Price : | $0.1-$5 / meter |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 6000tons / year |
| Delivery Time : | 10-15 work days |

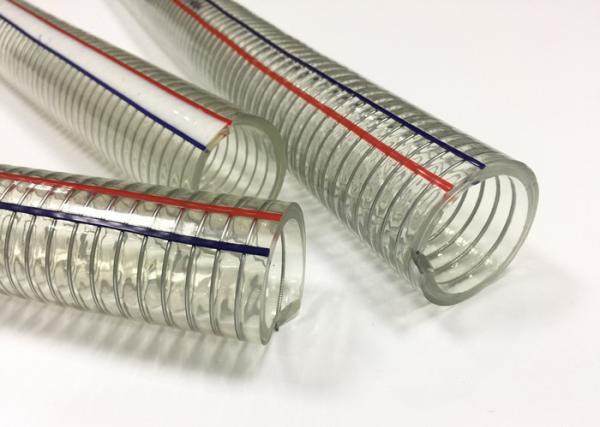

heavy duty soft pvc spiral steel wire reinforced suction hose pipe tubing
Alias:
PVC steel suction hoses, steel spiral reinforced PVC Suction Hose, Water Suction Hoses with steel wire, PVC Suction and discharge hoses, steel reinforce PVC hoses.
| Inner Diameter: | 6mm-250mm |
| color | clear, blue,yellow etc. |
| Length: | 20m/30m/50m/100m or customized |
| quality grade | food grade, no toxic grade |
| reinforced material | spiral zinc-plated steel wire |
| working temperature | -5℃ - 65℃ |
This hose, with steel wire screwing inlaid in the hose, is light, transparent, with small bending radius. It has good adaptability to hard weather conditions and minus pressure, flexible, durable, non-toxic, anti-erosion. It can keep its sharp under high pressure or minus pressure conditions.
The steel wire design helps reinforce the strength of the hose to allow for both high pressure and use in suction applications. The hose is capable of maintaining full vacuum at room temperature. The steel wire PVC tubing works excellent in many fluid applications where general chemical resistivity and high pressure handling is required.
Specification:
| Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1/4 | 6 | 0.433 | 11 | 0.12 | 10 | 145 | 100 | 300 |
| 5/16 | 8 | 0.551 | 14 | 0.15 | 10 | 145 | 100 | 300 |
| 3/8 | 10 | 0.629 | 16 | 0.20 | 10 | 145 | 100 | 300 |
| 1/2 | 12 | 0.708 | 18 | 0.22 | 8 | 120 | 100 | 300 |
| 5/8 | 15 | 0.866 | 22 | 0.31 | 8 | 120 | 100 | 300 |
| 3/4 | 19 | 0.984 | 25 | 0.36 | 8 | 120 | 50 | 150 |
| 1 | 25 | 1.299 | 33 | 0.54 | 8 | 120 | 50 | 150 |
| 1-1/4 | 32 | 1.614 | 41 | 0.78 | 7 | 100 | 40 | 120 |
| 1-1/2 | 38 | 1.889 | 48 | 1.05 | 6 | 90 | 40 | 120 |
| 1-3/4 | 45 | 2.204 | 56 | 1.30 | 6 | 90 | 40 | 120 |
| 1-7/8 | 48 | 2.322 | 59 | 1.40 | 6 | 90 | 40 | 120 |
| 2 | 50 | 2.441 | 62 | 1.60 | 5 | 75 | 40 | 120 |
| 2-1/4 | 58 | 2.755 | 70 | 2.00 | 5 | 75 | 30 | 90 |
| 2-1/2 | 63 | 3.149 | 80 | 2.80 | 5 | 75 | 30 | 90 |
| 3 | 75 | 3.582 | 91 | 3.50 | 4 | 60 | 30 | 90 |
| 3-1/2 | 90 | 4.251 | 108 | 4.50 | 4 | 60 | 20 | 60 |
| 4 | 100 | 4.645 | 118 | 4.80 | 3 | 45 | 20 | 60 |
| 5 | 127 | 5.629 | 143 | 6.00 | 3 | 45 | 20 | 60 |
| 6 | 152 | 6.692 | 170 | 9.00 | 3 | 45 | 10 | 30 |
| 8 | 200 | 8.818 | 224 | 12.00 | 3 | 45 | 10 | 30 |
| 10 | 250 | 10.866 | 276 | 23.00 | 2 | 30 | 10 | 30 |
Characteristics:
1. PVC Hose inlaid spiral steel wire to improve strength and toughness which with small bending radius.
2. Be enduring of high intensity, strong pulling force, and convenient for installation and transportation.
3. No smells, no poison, light and transparent.
4. It has good adaptability to bad weather conditions and minus pressure.
5. Working Temperature: -5°c to + 65°c
Applications:
It is the ideal choice for the usage in industry, agriculture and sanitation for drawing and conveying water, oil and power, and also suitable for high strength working environment like suction and discharge for sand.
