    Anti Static PVC Steel Wire Hose / Clear Flex Hose For Convey Gas Liquid Powder

    Ask Lasest Price
    Brand Name : ET
    Model Number : 1/4"-10"
    Certification : ISO9001:2008,SGS,ROHS
    Price : $0.1-$5 / meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 6000tons / year
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

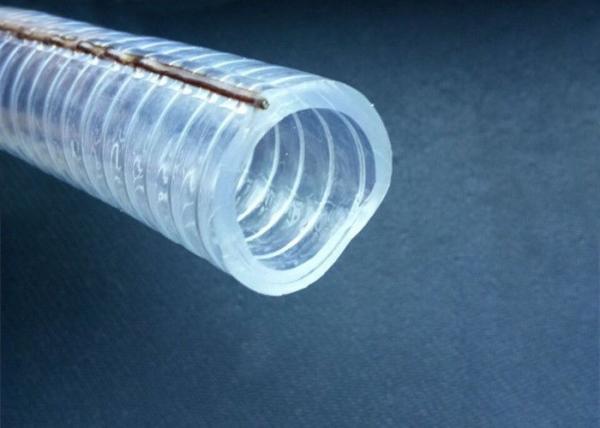

    Anti Static PVC Steel Wire Hose / Clear Flex Hose For Convey Gas Liquid Powder

    anti static clear flex pvc steel wire reinforced hose for convey gas liquid powder


    The anti static pvc steel wire reinforced hose is a three layer structure, inside and outside the two layers is PVC soft plastic, the middle layer is a steel wire reinforced structure, or steel wire or spiral steel wire, and copper wire inserted into the hose, the internal increase in the steel layer to cause PVC pipe strength, distortion, quality and other aspects of a change in the modified or enhanced PVC pipe.


    working pressure​3bar-8bar
    ColorClear, Transparent, Orange, Yellow, Red and so on.
    length20m / 30m /40m / 50m or customized
    burst pressure9bar-24bar
    application​convey oil, gas, water, powder etc.
    features
    anti-static, flexible, durable, non smell, light weight

    features:

    PVC steel pipe for the embedded steel skeleton PVC hose. The inner and outer tube walls are transparent, smooth, no bubbles, fluid delivery is clearly visible; low concentration of acid and alkali, high elasticity, easy aging, long service life; high pressure, in high pressure vacuum to maintain the status quo.


    1. available with various colors and markings

    2. achieving both flexibility and high pressure resistance, light weight

    3. proving long life through excellent adhesive strength between inner and outer tube.

    4. no tearing off by excessive pressure and stretch.


    production process

    1. Material

    2. Weaving steel wire

    3. Cooling and Making line

    4. PVC steel wire hose

    5. Rolling

    6. Packing

    7. Waiting for loading

    Specification:


    Inner DiameterOuter DiameterWeightW.P.(at 23℃)Std Length
    inchmminchmmkg/mbarpsimft
    1251.299330.54812050150
    1-1/4321.614410.78710040120
    1-1/2381.889481.0569040120
    1-3/4452.204561.3069040120
    1-7/8482.322591.4069040120
    2502.441621.6057540120
    2-1/4582.755702.005753090
    2-1/2633.149802.805753090
    3753.582913.504603090
    3-1/2904.2511084.504602060
    41004.6451184.803452060
