| Brand Name : | ET |
| Model Number : | 1/4"-10" |
| Certification : | ISO9001:2008,SGS,ROHS |
| Price : | $0.1-$5 / meter |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 6000tons / year |
| Delivery Time : | 10-15 work days |

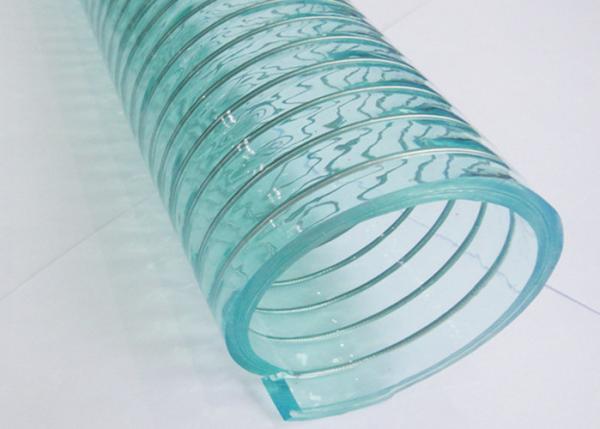

clear flex plastic pvc spiral steel wire reinforced suction hose / pipe / tube
| Inner Diameter: | 6mm-250mm |
| Color | Transparent or blue, green etc. |
| Length: | 10m/20m/30m/40m/50m/100m or customized |
| features | Transparency, Chemical Resistant, Weather Resistant |
| Transporting Medium: | Liquids, Powder, Granules |
| Application: | Manufacturing, Industry and Agriculture |
Material:
Extrude industrial grade, food grade or medical grade material PVC with one layer steel wire spiral reinforcement.
Characteristics:
1. This hose, with steel wire screwing inlaid in the hose, is light, transparent, with small bending radius.
2. It has good adaptability to hard weather conditions and vacuum pressure.
3. With colorful symbol lines on the surface of the hose, it can be beautiful.
4. standard temperature: -5℃ to +65℃, low / high temperature resistant.
5. smooth tube wall, no residue
6. built-in spiral elastic steel wire layer, high strength, anti-twist cavity and the outer edge of a standard round surround.
7. material soft, cold frost, soft seasons, free bending
Application:
The hose is widely used for suction and discharge of water, oil and powder in the factories, agriculture, engineering, foodstuffs and sanitation lines, the hose used for foodstuffs is made of special material. It is non-toxic, light, without odor and transparent.
The hose can be used for conveying milk, beverage, distilled liquor, beer, jam and other foods. We can also insert the cooper wire into hose. This hose can avoid the block of the flowing in the hose due to static, protect users from getting electric shock or electric current impingement.
Specification:
| Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1/4 | 6 | 0.433 | 11 | 0.12 | 10 | 145 | 100 | 300 |
| 5/16 | 8 | 0.551 | 14 | 0.15 | 10 | 145 | 100 | 300 |
| 3/8 | 10 | 0.629 | 16 | 0.20 | 10 | 145 | 100 | 300 |
| 1/2 | 12 | 0.708 | 18 | 0.22 | 8 | 120 | 100 | 300 |
| 5/8 | 15 | 0.866 | 22 | 0.31 | 8 | 120 | 100 | 300 |
| 3/4 | 19 | 0.984 | 25 | 0.36 | 8 | 120 | 50 | 150 |
| 1 | 25 | 1.299 | 33 | 0.54 | 8 | 120 | 50 | 150 |
| 1-1/4 | 32 | 1.614 | 41 | 0.78 | 7 | 100 | 40 | 120 |
| 1-1/2 | 38 | 1.889 | 48 | 1.05 | 6 | 90 | 40 | 120 |
| 1-3/4 | 45 | 2.204 | 56 | 1.30 | 6 | 90 | 40 | 120 |
| 1-7/8 | 48 | 2.322 | 59 | 1.40 | 6 | 90 | 40 | 120 |
| 2 | 50 | 2.441 | 62 | 1.60 | 5 | 75 | 40 | 120 |
| 2-1/4 | 58 | 2.755 | 70 | 2.00 | 5 | 75 | 30 | 90 |
| 2-1/2 | 63 | 3.149 | 80 | 2.80 | 5 | 75 | 30 | 90 |
| 3 | 75 | 3.582 | 91 | 3.50 | 4 | 60 | 30 | 90 |
| 3-1/2 | 90 | 4.251 | 108 | 4.50 | 4 | 60 | 20 | 60 |
| 4 | 100 | 4.645 | 118 | 4.80 | 3 | 45 | 20 | 60 |
| 5 | 127 | 5.629 | 143 | 6.00 | 3 | 45 | 20 | 60 |
| 6 | 152 | 6.692 | 170 | 9.00 | 3 | 45 | 10 | 30 |
| 8 | 200 | 8.818 | 224 | 12.00 | 3 | 45 | 10 | 30 |
| 10 | 250 | 10.866 | 276 | 23.00 | 2 | 30 | 10 | 30 |
|
|
