| Brand Name : | ET |
| Model Number : | 3/4"-16'' |
| Certification : | ISO9001:2008,SGS,ROHS |
| Price : | $0.03-$5 / meter |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 6000tons / year |
| Delivery Time : | 10-15 work days |

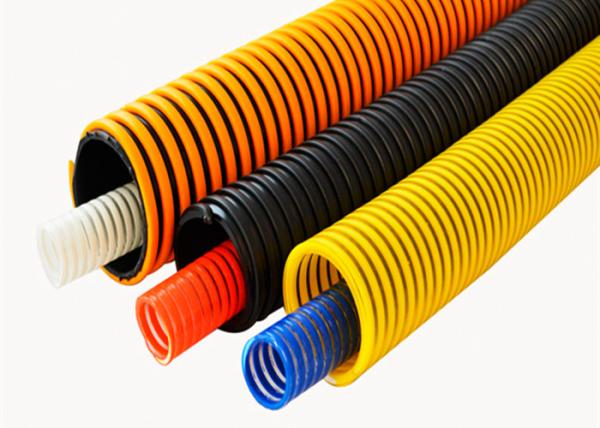

flexible colorful pvc spiral suction and discharge vacuum hose / pipe / tubing
PVC suction hose is made of plasticized PVC with a rigid PVC helix reinforced anti-choc spiral, which are elements that offer the flexibility of a hose and the firmness of rigid piping. Cover is smooth, or lightly corrugated, weather ozone and UV resistant; internal surface is smooth. Good resistance during aspiration and impulsion. Resistant to the action of agents found in the atmosphere and to numerous chemical products.
Specification:
| Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 3/4 | 19 | 0.945 | 24 | 0.25 | 6 | 90 | 50 | 150 |
| 1 | 25 | 1.181 | 30 | 0.33 | 6 | 90 | 50 | 150 |
| 1-1/4 | 32 | 1.457 | 37 | 0.38 | 6 | 90 | 50 | 150 |
| 1-1/2 | 38 | 1.732 | 44 | 0.58 | 6 | 90 | 50 | 150 |
| 2 | 51 | 2.284 | 58 | 0.82 | 5 | 75 | 50 | 150 |
| 2-1/2 | 64 | 2.835 | 72 | 1.17 | 5 | 75 | 30 | 90 |
| 3 | 76 | 3.307 | 84 | 1.40 | 4 | 60 | 30 | 90 |
| 4 | 102 | 4.488 | 114 | 2.70 | 4 | 60 | 30 | 90 |
| 5 | 127 | 5.512 | 140 | 3.60 | 4 | 60 | 30 | 90 |
| 6 | 153 | 6.575 | 167 | 5.00 | 3 | 45 | 20 | 60 |
| 8 | 203 | 8.543 | 217 | 6.25 | 3 | 45 | 10 | 30 |
| 10 | 254 | 10.787 | 270 | 10.00 | 2 | 30 | 10 | 30 |
| 12 | 305 | 12.953 | 329 | 18.00 | 2 | 30 | 10 | 30 |
| 14 | 358 | 15.039 | 382 | 20.00 | 2 | 30 | 50 | 150 |
| 16 | 408 | 17.008 | 432 | 23.00 | 2 | 30 | 50 | 150 |
PVC Suction Discharge Hose
1. Made of: High quality new PVC materials
2. Specification: 3/4" to 16" 19mm-408mm
3. Length: 10m/roll, 20m/roll,30m/roll,50m/roll 100 meters per roll
(for small size)
4. Color: green, yellow, red, black, clear etc.
5. Diameter and thickness as per the customers' requirement
6. Good flexibility, no poison and no smell.
7. Reinforced rigid plastic screw inserted into the inner wall of
flexible PVC hose.
8. To be light in weight with good resistance to the hard weather
conditions and minus pressure, and small bending radius.
9. Excellent resistance to pressure, external impacts, chemical,
gases, light acids and saline water.
10. Working Temperature: -5°C-65°C.
11. Ideal substitute for rubber hose, cement hose and metal hose in
many areas.
12. Widely used for pumping and delivery fluids such as water, oil
and powder in agriculture, factory and construction, can fit to PVC
pipe by PVC glue.
13. Especially ideal for ventilation and air conditioning system,
industrial vacuum cleaner, and granulate conveying systems.
|
|
