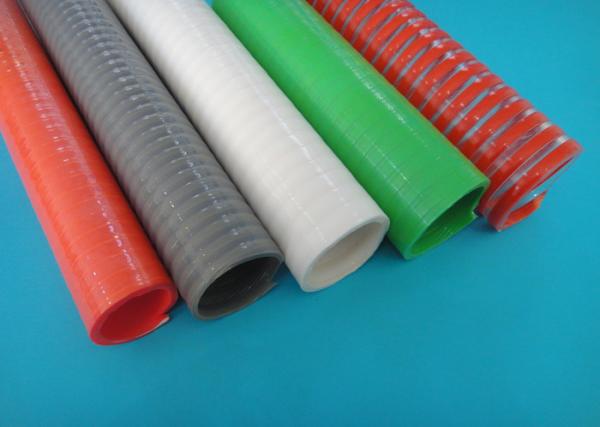

large diameter pvc spiral reinforced helix suction and discharge hose / pipe
| type | corrugated type and flat type |
| specification | 3/4inch to 8inch |
| length | 30ft to 150ft or customized |
| working pressure | 45psi to 120psi |
| standard | SGS; ISO |
| working temperature | -5℃ to +65℃ |
Structure:
1. Wall: High quality plasticized PVC
2. Reinforcement: Rigid PVC helix reinforced anti-choc spiral.
3. Characteristics: Strong, abrasion resistant, corrosion resistant and weather resistant. It’s stability and flexibility under performance.
Feature:
1. Good transparency and easy monitoring liquid flow.
2. Small bending radius and great ability of minus pressure resistance.
3. flexible, durable, non-toxic, without odor, and resistant to high pressure and erosion.
4. Adopting qualified foodstuff hygiene PVC synthesis materials;
5. Light weight, soft and elastic with long life span;
6. Colorful, brilliant and beautiful;
7. Non toxic, hi-temperature resistance
8. strong and durable, resistance to abrasion, corrosion, chemicals and terrible weather
9. soft surface, good flexibility, high burst pressure, long service life
10. easy to store, handle and use
11. suitable for conveying liquid materials in industry, agriculture irrigation, mines and civil engineering
Our Services
1. Full technical support from material mixing to final product
delivery.
2. On-time delivery with no compromise on quality.
3. High quality product making with advanced equipment and techniques.
Specification:
| Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 3/4 | 19 | 0.984 | 25 | 0.28 | 8 | 120 | 50 | 150 |
| 1 | 25 | 1.260 | 32 | 0.38 | 8 | 120 | 50 | 150 |
| 1-1/4 | 32 | 1.535 | 39 | 0.45 | 7 | 100 | 50 | 150 |
| 1-1/2 | 38 | 1.850 | 47 | 0.70 | 7 | 100 | 50 | 150 |
| 2 | 51 | 2.402 | 61 | 1.10 | 6 | 90 | 50 | 150 |
| 2-1/2 | 64 | 2.913 | 74 | 1.30 | 6 | 90 | 30 | 90 |
| 3 | 76 | 3.386 | 86 | 1.70 | 5 | 75 | 30 | 90 |
| 4 | 102 | 4.567 | 116 | 3.20 | 5 | 75 | 30 | 90 |
| 5 | 127 | 5.591 | 142 | 3.80 | 4 | 60 | 30 | 90 |
| 6 | 153 | 6.693 | 170 | 6.20 | 4 | 60 | 20 | 60 |
| 8 | 203 | 8.622 | 219 | 7.00 | 3 | 45 | 10 | 30 |
|
|
